Portkeys LH5P II Monitor: 5.5″ 2200nit Daylight-Viewable HDMI Monitor

Overview

The Portkeys LH5P II monitor is a professional 5.5-inch on-camera monitor designed for videographers and filmmakers who need reliable monitoring in bright outdoor conditions. With 2200 nits of brightness, this device remains clearly visible even in direct sunlight – a game-changer for outdoor shoots. It features a 1920×1080 10-bit IPS touchscreen, 4K HDMI input and output (up to 4Kp30), a full suite of professional monitoring tools, 3D LUT support, and wired/wireless camera control for select Sony, Canon, Panasonic, Blackmagic, and Z CAM cameras. The unit is built with a CNC aluminum alloy shell and tempered glass for durability. (1)

The Portkeys LH5P II monitor was released in 2022 as the successor to the original LH5P. It improved brightness from 2000 to 2200 nits and added enhanced camera control features. This monitor quickly became popular among videographers who needed a bright, affordable option with professional tools. (2)

What makes this device so special? First, the 2200-nit brightness is visible in direct sunlight. Second, the full suite of professional monitoring tools (waveform, histogram, vectorscope, ARRI false color, focus peaking) rivals monitors costing twice as much. Third, the all-metal CNC aluminum construction is durable and professional. It is the best value in professional on-camera monitors. (3)

This unit of the Portkeys LH5P II monitor is in excellent condition (97%) – fully tested, light signs of use if any, works perfectly. It includes HDMI cable, USB flash drive (user manual + firmware), and full accessory bundle. With a 90-day warranty and free shipping worldwide, this monitor is ready for professional use. (4)

For complete technical specifications, visit the official product page. (5)

Key Specifications

The specifications above show why this device is such a popular choice. The 2200nit brightness, professional tools, and all-metal build are the key features. (6)

2200nit Brightness – Daylight Viewable

This monitor features 2000-2200 nits of brightness – significantly brighter than typical camera LCD screens (which are 500-1000 nits). This high brightness is the defining feature of the Portkeys LH5P II monitor. (7)

What does 2200 nits mean for your shooting? You can see the screen clearly even in direct sunlight. Most on-camera monitors become unusable outdoors. This device remains bright and clear, making outdoor shooting enjoyable rather than frustrating. (8) Portkeys LH5P II monitor

The backlight is adjustable, with settings as low as 5 nits working well indoors. You can use this monitor in any lighting condition. (9)

For outdoor filmmakers, it is essential. You can monitor focus, exposure, and composition without squinting or using a hood. (10)

5.5-Inch 10-Bit IPS Touchscreen

The device features a 5.5-inch 1920×1080 IPS touchscreen with 10-bit color depth (8+2 FRC). The screen is sharp, detailed, and color-accurate. (11) Portkeys LH5P II monitor Portkeys LH5P II monitor

What does 10-bit color mean? It displays over 1 billion colors (compared to 16.7 million on 8-bit screens). This means smoother gradients and more accurate color representation. (12)

The touchscreen is responsive and intuitive. You can navigate menus, pinch to zoom, and tap to access tools. The interface is clean and easy to use. (13)

The IPS panel provides 178-degree viewing angles. You can see the screen clearly from any angle – essential when it is mounted on a gimbal or camera rig. (14)

Professional Monitoring Tools

The Portkeys LH5P II monitor includes a full suite of professional monitoring tools that rival monitors costing much more. (15)

Waveform – The waveform monitor shows luminance levels across the frame. Use it to check exposure and ensure you are not clipping highlights or crushing shadows. It offers Luma Waveform and RGB Waveform options. (16) Portkeys LH5P II monitor

Histogram – The histogram shows the distribution of tones in your image. Use it to check overall exposure. (17)

Vectorscope – The vectorscope shows color saturation and hue. Use it to check skin tones and color balance. It is essential for color-critical work. (18)

ARRI False Color – ARRI false color is the industry standard for exposure checking. This monitor includes ARRI false color, showing exposure levels in different colors. Pink is overexposed. Purple is underexposed. Green is middle gray. This is a professional feature usually found on much more expensive monitors. (19) Portkeys LH5P II monitor

Focus Peaking – Focus peaking highlights in-focus areas with colored outlines. Use it to confirm critical focus. It is adjustable (color and intensity). (20)

Zebra – Zebra stripes show overexposed areas. Use it to avoid blown highlights. (21) Portkeys LH5P II monitor

Check Field – The check field shows focus at the pixel level. Use it for critical focus confirmation. (22)

Audio Meters – It includes audio meters to monitor incoming audio levels. (23) Portkeys LH5P II monitor

3D LUT Support

This device supports 3D LUT monitoring. You can load up to 8 custom .cube LUTs via USB to preview your color grade in real-time while shooting. (24) Portkeys LH5P II monitor

What does LUT support mean for your workflow? You can shoot in log (S-Log, C-Log, V-Log, BRAW) and preview the final graded image on the screen. This helps you expose correctly and visualize the finished product. (25)

Monitoring tools can be set before or after the LUT – essential for accurate exposure when shooting log. It gives you full control. (26)

For filmmakers who use LUTs, it is a valuable tool. (27) Portkeys LH5P II monitor

Camera Control Features

The Portkeys LH5P II monitor offers both wired and wireless camera control for compatible cameras. This is a professional feature that sets it apart from basic monitors. (28)

Wireless control for Sony cameras – It supports wireless touch-to-focus on Sony FX3 and A7S III. You can start/stop recording, adjust aperture, ISO, and shutter speed wirelessly. (29)

Wired control – For Sony, Canon, Panasonic, Blackmagic, and Z CAM cameras, it supports wired control. Use the monitor to adjust camera settings without touching the camera. (30) Portkeys LH5P II monitor

Tilta Nucleus-N/M control – It supports wired follow focus control directly from the monitor. You can control the Tilta Nucleus system via the screen.

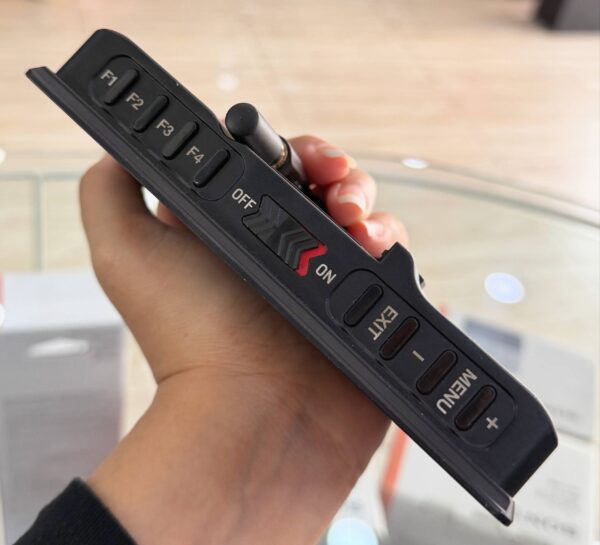

Customizable function buttons – Map the buttons to start/stop recording, or control IRIS, shutter, ISO. Portkeys LH5P II monitor

For solo operators, the camera control features are invaluable. You can adjust settings without taking your hands off the rig.

Durable All-Metal Build Quality

The unit features a CNC machined aluminum alloy shell with tempered glass over the display. This is surprisingly robust for its price point. Most affordable monitors use all-plastic construction; this one is built to withstand daily use on set. Portkeys LH5P II monitor

What does all-metal construction mean? It is durable and professional. It can handle bumps and knocks that would crack plastic monitors.

The tempered glass screen is resistant to scratches. It is designed for the rigors of professional filmmaking.  Portkeys LH5P II monitor

Power Flexibility

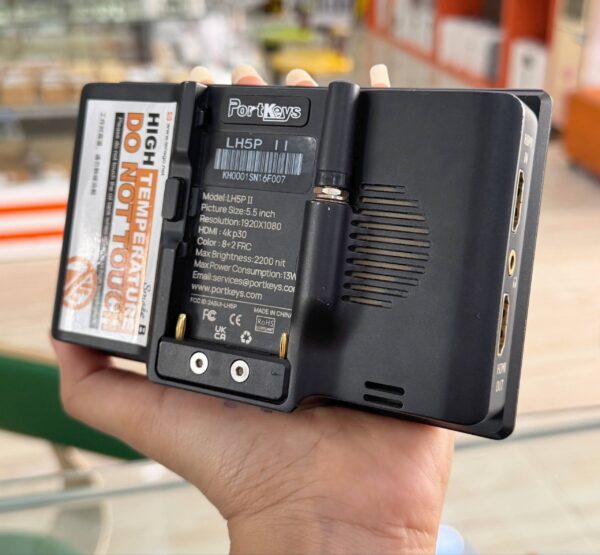

This monitor has a built-in Sony NP-F battery plate. It accepts widely available NP-F550/750/970 batteries (not included) for extended runtime.

At just 13W maximum power draw, NP-F750 batteries typically last through full shoot days. It is efficient.

A 5-pin aviation port accepts 7-24V DC input for external power sources. You can power it from a V-mount battery, D-tap, or wall outlet.

4K HDMI Input and Output

The device features 4K HDMI input and output (up to 4Kp30). You can connect it between your camera and an external recorder.

The HDMI output loop-through allows you to send the signal to another monitor, recorder, or wireless transmitter. It is versatile.

It accepts 4K DCI at 24p and 4K UHD at 30p. For higher frame rates, it downscales to 1080p for display.

Best Use Cases

Outdoor Filmmaking – This monitor is essential for outdoor shoots. The 2200nit brightness is visible in direct sunlight. You can monitor focus and exposure without squinting.

Gimbal Operators – For gimbal users, the lightweight 285g weight is ideal. The screen is light enough for small gimbals. The touchscreen is easy to use on the go.

Solo Operators – For solo filmmakers, the camera control features are invaluable. You can adjust settings without taking your hands off the rig.

Studio and Indoor Work – For studio work, it provides professional monitoring tools. The waveform, vectorscope, and false color help you achieve accurate exposure and color.

Documentary Filmmakers – For documentary shooters, it is a reliable tool. The bright screen works outdoors. The durable build withstands field use.

Comparison with Alternatives

vs Atomos Shinobi II – The Shinobi II has 1500 nits brightness (vs 2200 nits) and lacks camera control features. The Portkeys LH5P II monitor is brighter and has camera control.

vs SmallHD Focus 5 – The SmallHD Focus 5 has 800 nits brightness and is more expensive. Our monitor is brighter and more affordable.

vs FeelWorld LUT5 – The FeelWorld LUT5 has plastic construction and fewer camera control features. Our monitor has all-metal build and better camera control.

vs Portkeys LH5P (original) – The original LH5P has 2000 nits and fewer camera control features. The LH5P II is brighter and improved.

Honest Limitations

Who Should Buy This Monitor

Outdoor Filmmakers – If you shoot outdoors in bright sunlight, this monitor is essential. The 2200nit brightness is visible in direct sunlight. You will not need a monitor hood.

Gimbal Operators – For gimbal users, the lightweight 285g design is ideal. It is light enough for small gimbals like the DJI RS 3 Mini.

Solo Operators – For solo filmmakers, the camera control features are invaluable. Adjust settings from the monitor without touching the camera.

Budget-Conscious Filmmakers – At $160 for an excellent condition unit, this is exceptional value. Professional monitoring tools, 2200nit brightness, and all-metal build for the price of a basic monitor. Portkeys LH5P II monitor

Sony, Canon, Panasonic, Blackmagic Shooters – If you shoot with these systems, the camera control features work with your gear.

What’s in the Box

Frequently Asked Questions

Is this monitor bright enough for outdoor use? Yes. At 2200 nits, it is visible in direct sunlight. This is one of the brightest monitors in its price range.

Does it work with my camera? It works with any camera that has HDMI output. For camera control features, check compatibility with your specific camera model.

Does it come with a battery? No. It requires Sony NP-F series batteries (NP-F550/750/970). These are available separately for $20-40.

Is it good for focus pulling? Yes. The focus peaking and check field tools help you confirm critical focus. The 5.5-inch 1080p screen is sharp enough for manual focus.

What is the difference between this and the Atomos Shinobi II? This monitor is brighter (2200 nits vs 1500 nits), has camera control features, and is more affordable. The Shinobi II is from a more established brand. Choose this for brightness and value.

Final Verdict

The Portkeys LH5P II monitor is a professional 5.5-inch on-camera monitor that offers exceptional value. The 2200nit brightness is visible in direct sunlight – essential for outdoor shooting. The full suite of professional monitoring tools rivals monitors costing twice as much. The 3D LUT support allows you to preview your grade. The camera control features work with Sony, Canon, Panasonic, and Blackmagic cameras. The all-metal CNC aluminum construction is durable and professional.

Is it perfect? No. There is no SDI input. The fan makes slight noise. Batteries are not included. But for outdoor filmmakers, gimbal operators, solo shooters, and budget-conscious filmmakers, it is an excellent choice.

At $160 for an excellent condition unit with full accessories and 90-day warranty, this is exceptional value for a professional on-camera monitor.

Order the Portkeys LH5P II monitor today with free shipping worldwide.

Price: $160
Condition: Excellent (97%)
Warranty: 90 days
Shipping: Free worldwide
